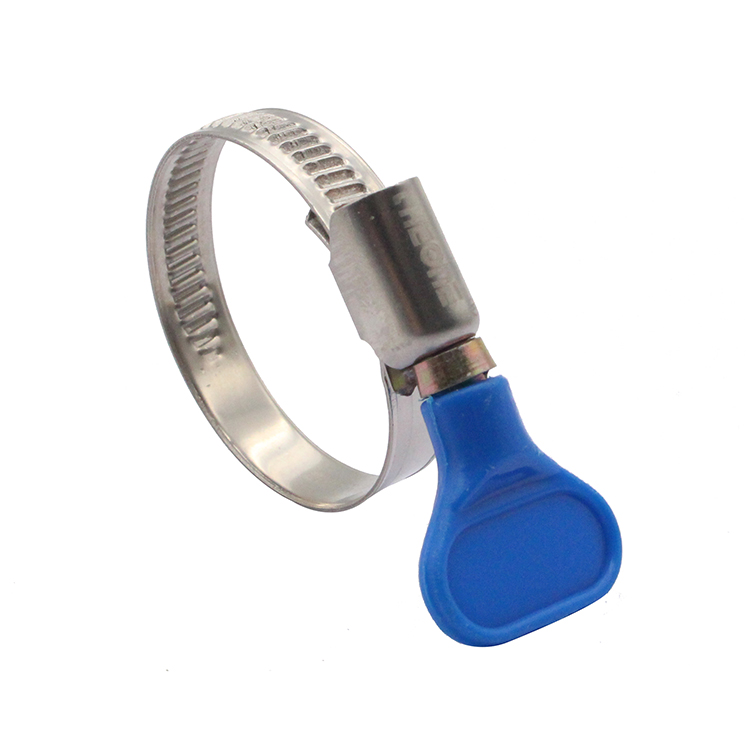

German Type Colourful Butterfly Hose Clamp

German Type Colourful Butterfly Hose Clamp  is widely used in automobiles, tractors, forklifts, locomotives, ships, mines, petroleum, chemicals, pharmaceuticals, agriculture, and other water,oil, steam, dust,etc.The hose clamp is tightly locked,tight and has a wide adjustment range.It is suitable for fasteners with soft and hard pipe connections.It is more easier to operate.For further information or products details ,please feel free to contact us.   vd Main Market:Russia, Europe, America and some countries in the Middle East

Products Details

Production Description

German Type Colourful Butterfly Hose Clampis suitable for hand fitting and supplied with a thumb screw,allowing easy toruqe using just a thumb and forefinger.Suitable for applications where there is a requirement for requent tightening/loosening on low torque application;mainly for the hardware market.
This product range is manufactured to DIN standard and has a plastic spade for ease of use.Wingspades are suited to fittings that may need to be removed from time to time such as dust extraction units,garden hoses and other domestic applications.

  • easy to operate
  • sturdy lock
  • pressure resistance
  • torque balanced
  • big adjustable range

NO.

Parameters Details

1.

Bandwidth*thickness 1) zinc plated :9/12*0.7mm
2) stainless steel:9/12*0.6mm

2.

Size 8-12mm to all

3.

Connection welding

4.

Butterfly Handle Plastic

5.

Plastic Handle Colour As your request

6.

OEM/ODM OEM /ODM is welcome

vd Product Components

htr德式手柄13_01

vd Material

TO Part No.

Material

Band

Housing

Screw

Handle

TOGMB

W1

Galvanized steel

Galvanized steel

Galvanized steel

Plastic/Stainless steel/Galvanized steel

TOGMBS

W2

SS200/SS300 series

SS200/SS300 series

Galvanized steel

Plastic/Carbon steel

TOGMBSS

W4

SS200/SS300 series

SS200/SS300 series

SS200/SS300 series

SS200/SS300 series

TOGMBSSV

W5

SS316

SS316

SS316

SS316

vd Tightening Torque

Thumb screw German type hose clamp recommended installation free torque is less than 1Nm,load torque is 6.5Nm.

vd Application

Thumb screw German type hose clamp is widely used in automobiles, tractors, forklifts, locomotives, ships, mines, petroleum,chemicals,pharmaceuticals,agricultures and other water,oil,steam,dust etc

You can see some usage scenario in below picture.

德式手柄用途1200宽 德式手柄用途1200宽
